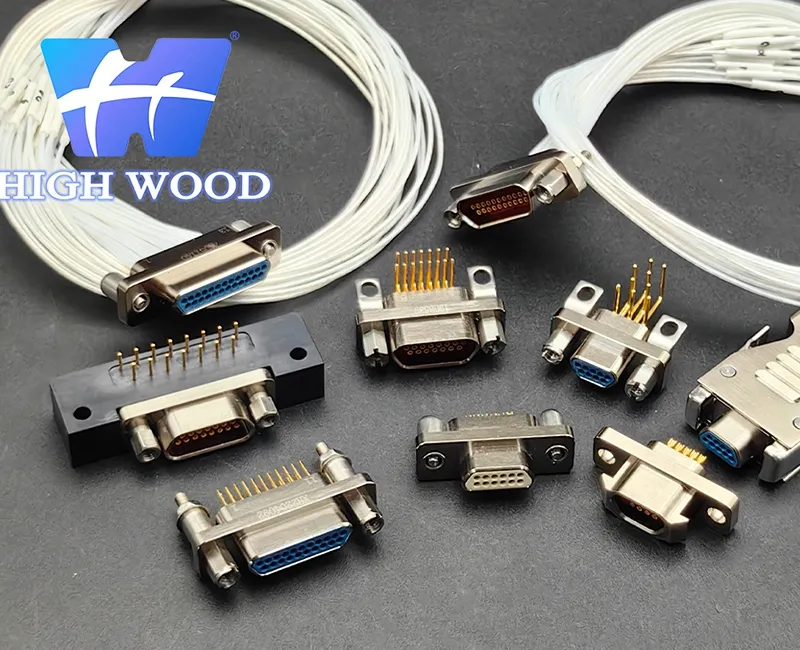

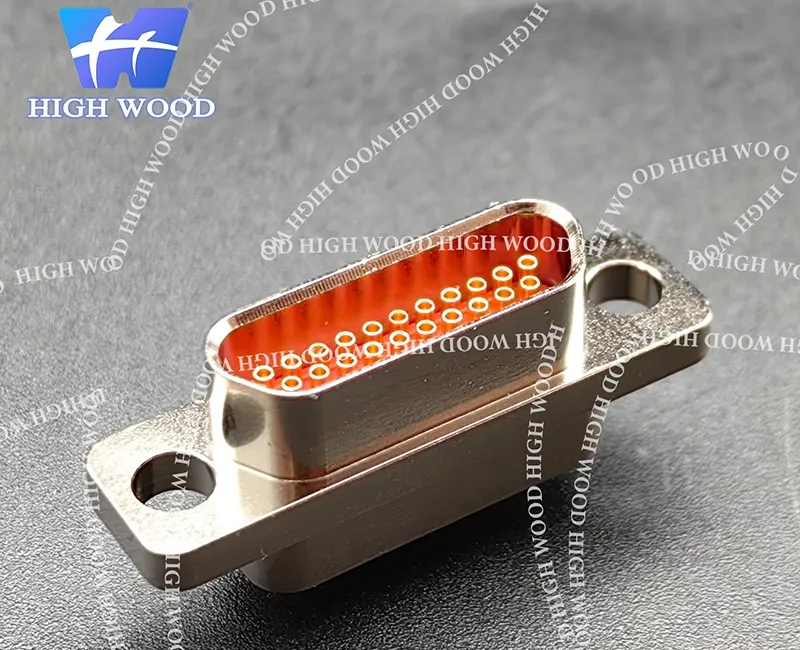

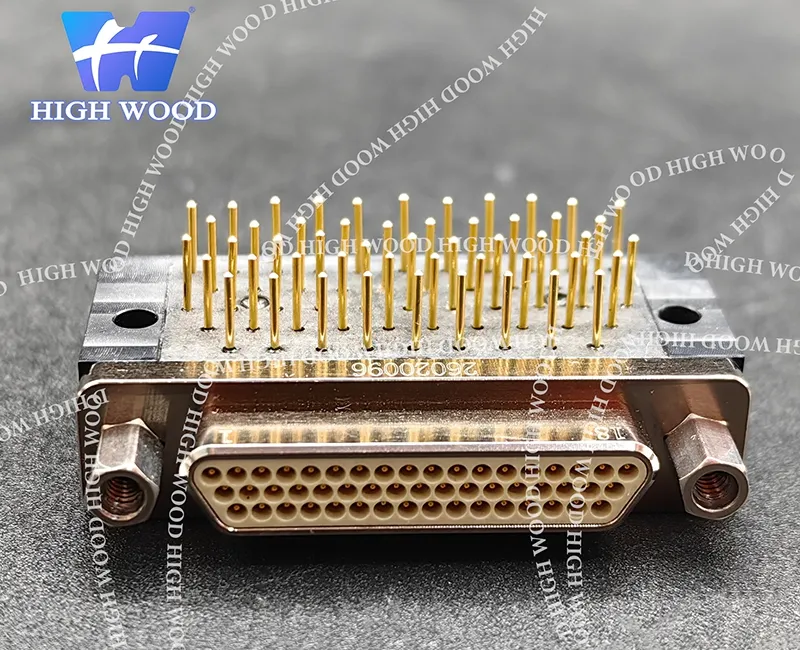

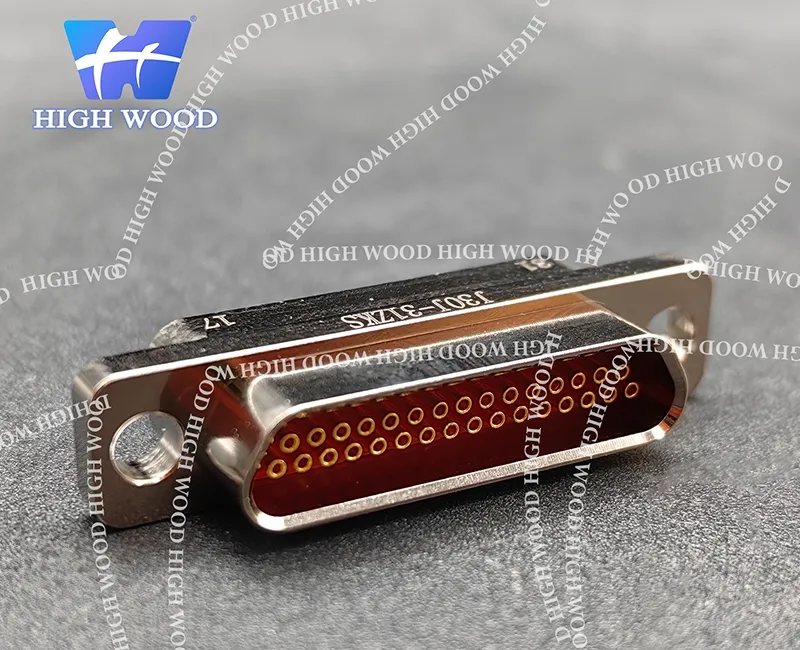

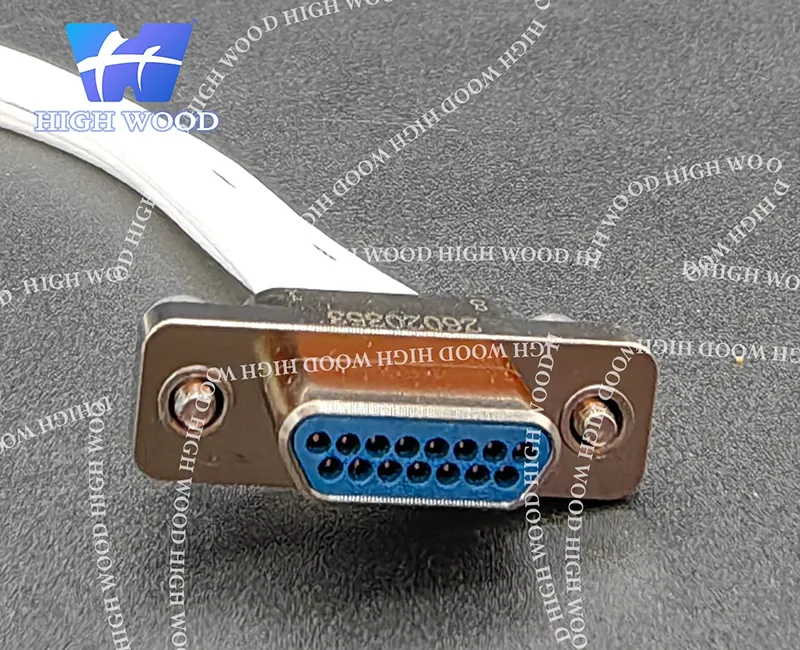

Micro-D Connectors, 1.27mm Pitch Connectors
Board-to-Board Connectors, Wire-to-Wire Connectors, Wire-to-Board Connectors
1.27 mm high-density connectors are manufactured in accordance with GJB2446A / MIL-C-83513 standards and use a metal-shielded design comparable to U.S. MDM connectors. They are available in configurations from 9 to 144 contacts, covering 11 standard layouts, and support board-to-board, wire-to-board, and wire-to-wire connections. These rectangular connectors use flexible twisted contact pins to improve contact stability in high-density layouts. Their compact structure supports use in equipment with limited space and vibration resistance requirements. PCB tail options can be customized according to different installation needs.
Specifications
| Operating Temperature | -55 °C to +125 °C |
| Rated Current | 3 A |
| Contact Resistance | ≤ 10 mΩ |
| Insulation Resistance | Normal: ≥ 5000 MΩ Damp heat: ≥ 100 MΩ |
| Dielectric Withstanding Voltage (DWV) | 800 V |
| Vibration | 10 to 2000 Hz, 196 m/s² |
| Mechanical Shock | 735 m/s² |
| Mating cycles | 500 cycles |
| Air Leakage Rate (1 atm) | J30JM: 5×10⁻² Pa·cm³/s J30JM1 / J30JMD1: 1×10⁻³ Pa·cm³/s |
| Locking Torque | 9 to 100 contacts: 0.15 to 0.2 N·m 144 contacts: 0.20 to 0.30 N·m |
| Salt Spray | 96 hours |
High Wood works with customers across Asia, Europe, the Americas, and other international markets, building long-term partnerships with more than 200 companies worldwide, including Klemsan (Turkey), CPE (Italy), and SUNGJIN (Korea). Backed by over 10 years of experience in the connector industry, we have an R&D team that focuses on practical engineering work, from electrical connector design and structural optimization to detailed drawings, helping customers move smoothly from development to mass production.
