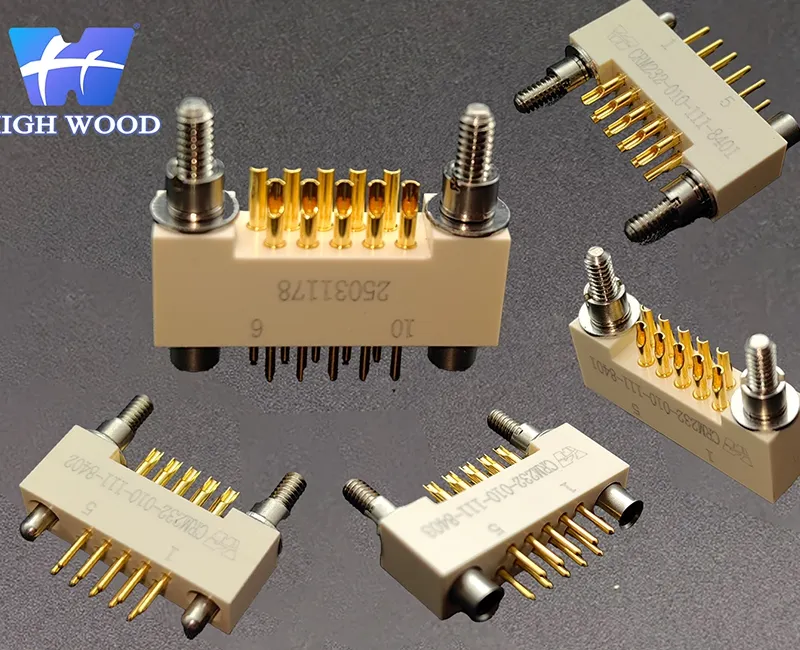

PCB Connectors, 1.905mm Pitch Connectors
Board-to-Cable Connectors, Board-to-Board Connectors
PCB connectors with a 1.905 mm pitch are used for signal transmission between printed circuit boards and between boards and cable assemblies inside electronic enclosures. They are used for internal connections between printed circuit boards and between boards and cable assemblies in aerospace, defense, naval, and industrial equipment. Our PBC connectors are available in different configurations, such as 2-row designs with 10 to 100 contacts and 3-row designs with 11 to 206 contacts, depending on the application.
Specifications
| Environmental | Operating Temperature | -55°C to +125°C |
| Mechanical | Vibration | 10 to 2000 Hz, 147 m/s² |
| Shock | 980 m/s² | |
| Mating cycles | 1000 cycles | |
| Electrical | Dielectric Withstanding Voltage (DWV) | 750 V @ Sea Level |
| Insulation Resistance | Normal: ≥ 5000 MΩ Damp heat: ≥ 20 MΩ | |
| Contact Resistance | ≤ 25 mΩ | |
| Current Rating | 3 A | |
| Material | Locking Hardware | Stainless Steel |
| Insulator | PPS | |
| Contacts | Copper alloy, gold plated |
Features
- PCB connectors comply with MIL-C-55302 and equivalent GJB1438A requirements for military-grade applications.
- Compatible with wave soldering processes for through-hole PCB assembly.
- 1.905 mm contact pitch ensures stable signal transmission in compact PCB interconnection designs.
