ARINC600 Rack and Panel Connectors

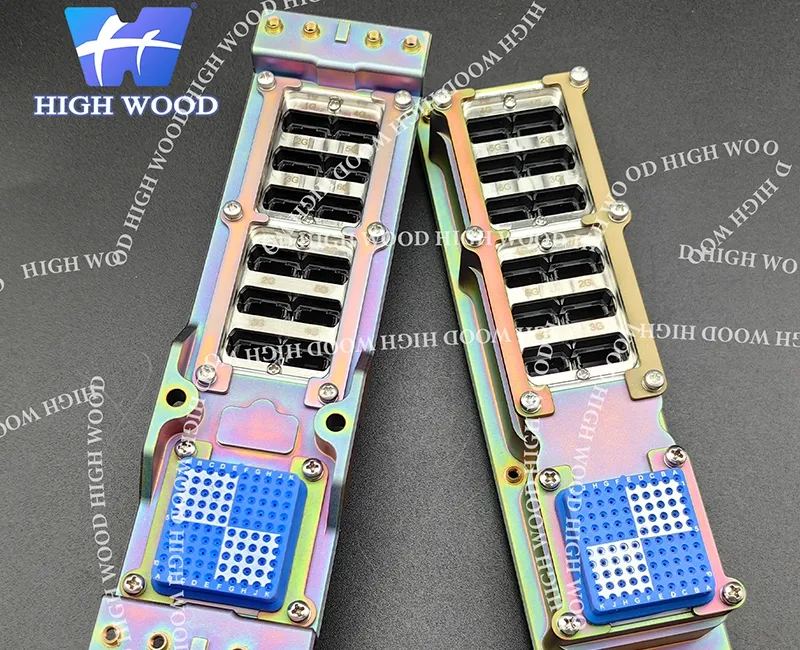

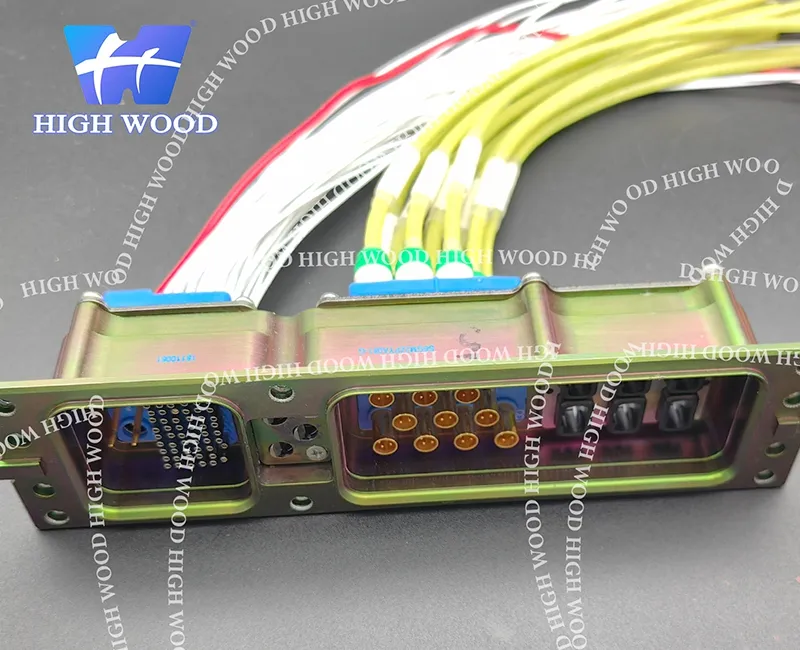

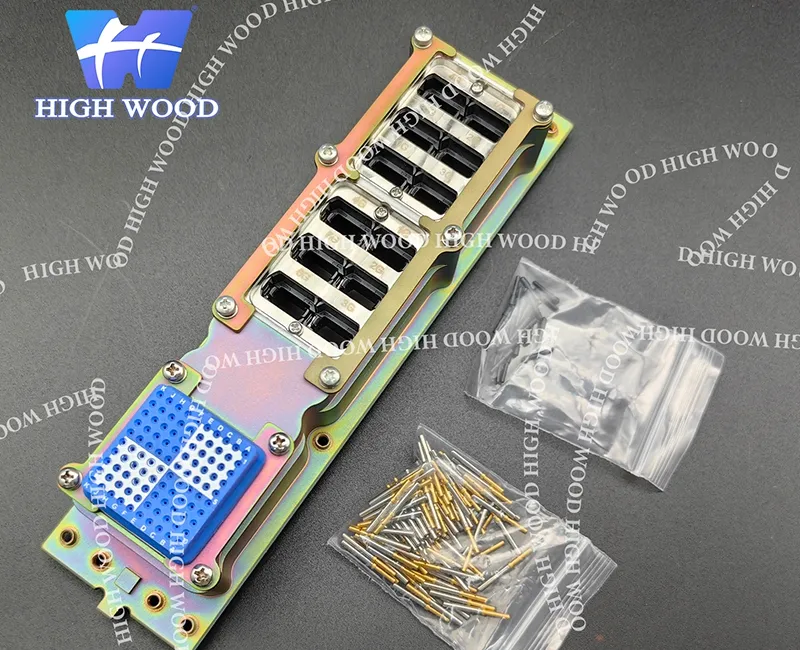

Rectangular rack and panel connectors use a modular metal-frame design with different contact types within the same connector. Low-frequency signals, power, high-speed differential lines, RF coaxial, and fiber optic contacts can be combined for mixed signal transmission. Each 8# position supports high-speed differential, dual coaxial, standard coaxial, or floating coaxial contacts, while each 16# position supports either power or fiber optic contacts depending on the application.
Specifications
| Materials | |
| Shell Material & Finish | Aluminum Alloy / Cadmium or Nickel plated |
| Insulator | Thermoplastic |
| Seals | Silicone Rubber |
| Contacts | Copper Alloy, Gold Plated |
| Mechanical | |
| Mating cycles | 500 cycles |
| Mechanical Shock | 50 g, 11 ms, half-sine wave |
| Functional Vibration | 15 to 2000 Hz, 0.126 g² / Hz PSD, 6 hours total |
| Endurance Vibration | 15 to 2000 Hz, 0.201 g² / Hz PSD, 7.5 hours total |
| Environmental | |
| Operating Temperature | Optoelectronic Connectors: -55 °C to +85 °C Electrical Connectors: -65 °C to +150 °C |
| Salt Spray | Cadmium Plated Shell: 500 hours Nickel Plated Shell: 96 hours |
| Fluid Resistance | Resistant to aviation fuels, hydraulic fluids, and coolants |
| Electrical | |
| Insulation Resistance | ≥ 5000 MΩ @ 500 VDC |
| Contact Specifications | |||
| Contact Size | Wire Gauge (AWG) | Current Rating (A) | Contact Resistance (mΩ) |
| Size 22D | 22 | 5 | ≤ 11 |
| 24 | 3 | ≤ 11 | |
| 26 | 2 | ≤ 11 | |
| Size 20 | 20 | 7.5 | ≤ 8.5 |
| 22 | 5 | ≤ 8.5 | |
| 24 | 3 | ≤ 8.5 | |
| Size 16 | 16 | 13 | ≤ 5 |
| 18 | 10 | ≤ 5 | |
| 20 | 7.5 | ≤ 5 | |
| Size 12 | 12 | 23 | ≤ 2.5 |
| 14 | 17 | ≤ 2.5 | |
| Size 10 | 10 | 40 | ≤ 1.2 |
| Size 8 | 8 | 53 | ≤ 0.7 |
| Size 4 | 6 | 80 | ≤ 0.35 |
| Contact Electrical Performance | |||||
| Item | Size 16 | Size 12 | Size 10 | Size 8 | Size 4 |
| Dielectric Withstanding Voltage @ Sea Level | 1500 V | 1500 V | 1500 V | 1500 V | 1500 V |
| Dielectric Withstanding Voltage @ 30,480 m | 500 V | 500 V | 500 V | 500 V | 500 V |
| Current Rating | 13 A | 23 A | 40 A | 53 A | 80 A |
Features
- Rack and panel connectors are fully compliant with ARINC 600 standard for aerospace connector systems
- Different insulator and shell combinations can be used to meet different application requirements
- Supports mixed contact integration, including low-frequency, power, high-speed differential, RF, and optical types for signal transmission in a single connector
- 8# high-speed differential contacts support data transmission rates of up to 1.65 Gbps.
- 8# RF contacts operate at up to 500 MHz in standard configurations, while floating versions extend performance up to 18 GHz
